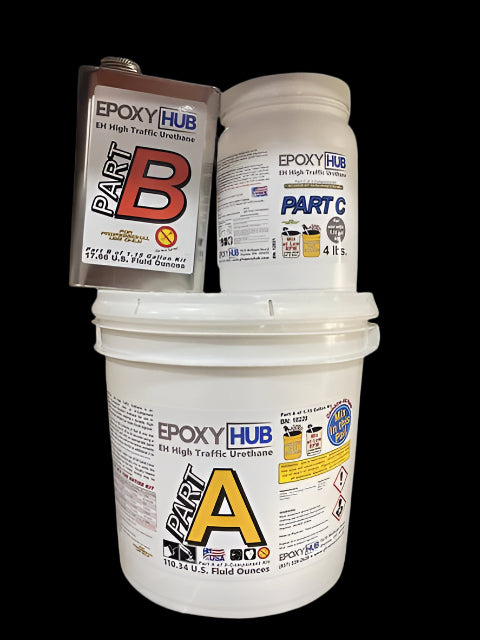

DESCRIPTION: Epoxy Hub’s EH High Traffic Urethane is an Aliphatic, 3-Component Clear, 90% Solids, Chemical Resistant Polyurethane containing a high traffic powder filler for use in environments needing a highly durable, chemical & abrasion resistant U.V. Stable topcoat with a Low Sheen Finish and very mild odor during installation. Solid colors may be achieved with the addition of Epoxy Hub’s EH Solid Color Packs which are sold separately.
RECOMMENDED USES (including but not limited to):
- Airplane & Military Hangar Floors
- Forklift traffic areas
- Heavy Industrial Manufacturing areas
- Pharmaceutical Floors
- Vehicle Assembly & Service areas
- Healthcare & Veterinary as topcoat over resinous flooring
- more
HIGHLIGHTS:
- Resists development of traffic patterns & finish dulling
- Excellent rolling load resistance to forklift traffic
- Improves light reflectivity
- Easy to clean
- Chemical resistant to most alcohols, caustics, fuels, oils and solvents
- Meets FDA Food Code – Physical Facilities 6-101.11 Surface Characteristics. Not tested for CFR 21 Direct Food Contact.
- Overnight return to service
- POTLIFE & CURE TIMES:
|
*Cure time is effected by temperature & humidity |
(50°F / 50% Humidity) |
(72°F / 50% Humidity) |
(90°F / 50% Humidity) |
|
Pot-life |
3 hours |
2 ½ hours |
1 hour |
|
Working Time |
3 hours |
2 ½ hours |
40 min. |
|
Recoat Window |
N/A |
N/A |
N/A |
|
Tack-Free |
6 hours |
3 hours |
2 hours |
|
Light Traffic (i.e. foot traffic) |
24 hours |
12 hours |
9 hours |
|
Heavy Traffic (i.e. Forklift, etc.) |
40 hours |
24 hours |
16 hours |
|
Chemical Resistance (Full Cure) |
10 days |
7 days |
5 days |
CURED COATING PROPERTIES (DRY FILM):
|
Property |
Test Method |
Results |
|
Abrasion Resistance, mg/loss* Taber Abraser |
ASTM D4060 |
16.8 mg loss |
|
VOC’s-Volatile Organic Compounds |
ASTM D3960 |
±43 g/L |
|
Gloss (60°) |
ASTM D1455 |
20° (±5°) |
|
Hardness (Pencil) |
ASTM D3363 |
3H |
|
Impact |
ASTM D2794 |
140 in.lbs. Direct & Reverse |
|
Adhesion to Steel - Pull Strength, psi (MPa) |
ASTM D4541 |
2,625 psi (18.1 MPa) |
|
Percent Elongation |
ASTM D2370 |
6% |
|
Water Absorption 24-hour immersion test |
ASTM C413 |
<0.02% |
|
Viscosity – Mixed |
ASTM D2196 |
383 cP |
|
Flash Point – Liquid State |
ASTM D3278 |
200°F (93°C) |
|
Volume Solids (Mixed) |
ASTM D2196 |
±90% |
